Luna Luce Italia LL-0723 Up Light

Luna Luce Italia LL-0723 Up Light

Marine-grade corrosion engineering defines the LL-0723: a die-cast aluminium structure and heat sink in EN AB-47100 alloy, wrapped in a 316L high-corrosion stainless-steel outer frame, with a transparent glass diffuser carried inside a silkscreen border. The aluminium is sandblasted then double-layer powder coated for durability against the salt, humidity and UV that punish coastal exteriors — the reason this fitting earns its place on UAE waterfront and landscape schemes. It draws 3W for 330 lumens through a narrow 5° beam (the datasheet's diagram shows further angles, but only the stated 5° is fixed here), sealed to IP67 with an IK08 impact rating and a CRI above 80, in a round body 95mm high on an 85mm diameter at AC220-240V with phase dimming and 3000K, 4000K and 6000K options. Specified for in-ground, recessed-ceiling or suspended mounting, it grazes facades and marks walkways. AL SHOLA ALMODEA supplies, installs and warrants the LL-0723 for 3 years across the Emirates.

Specifications

Power
3 W
Luminous flux
330 lm
Voltage
AC220-240V
CRI
>80
IP rating
IP67
IK rating
IK08
Beam angle
Colour temperature
3000K / 4000K / 6000K
Dimensions
Ø85 × 95mm
Material
die-cast aluminium, 316L stainless steel, glass
Mounting
in-ground
Dimmable
Yes
Dimming
Phase Dimming
Certifications
CE

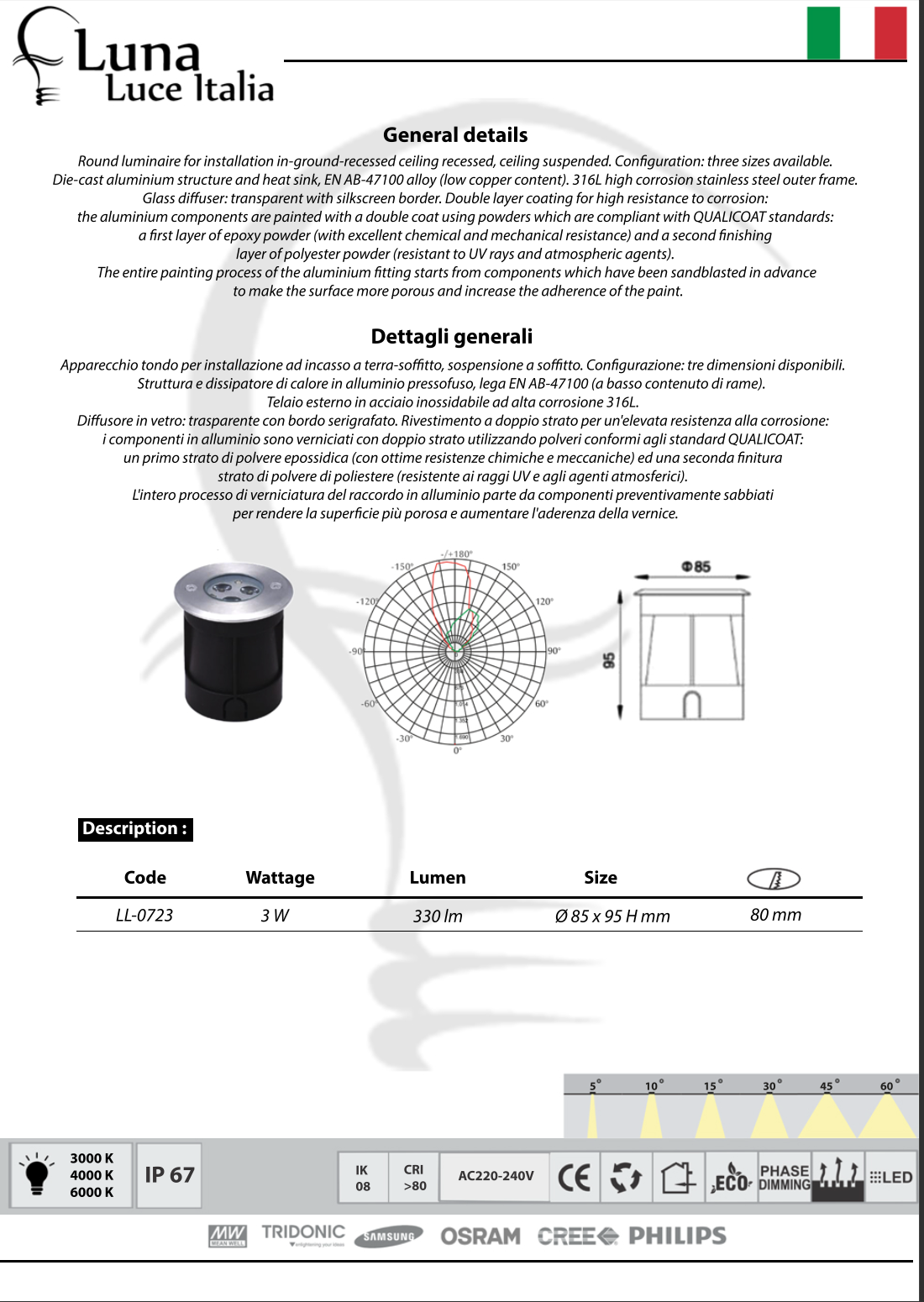

View datasheet (PNG)

Download Luna Luce Italia LL-0723 Up Light datasheet (PNG)
